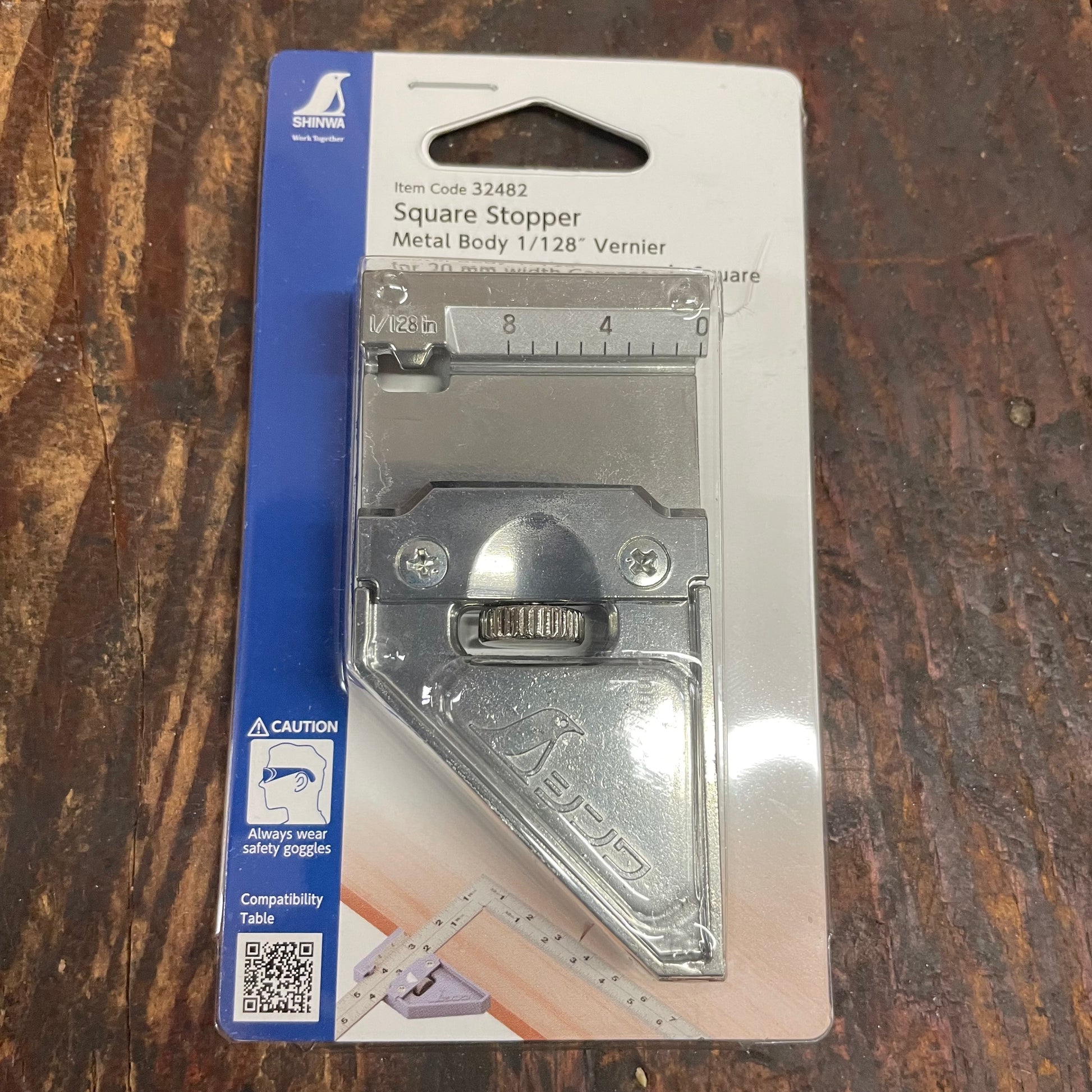

Shinwa Metal Body Square Stopper (32482)

Regular price $29.95 USD
Regular price Sale price $29.95 USD
Sale Sold out
Availability: 6 In stock
SKU#:
32482
Shipping calculated at checkout.

  • Metal-bodied stopper is resistant to impact, wear and heat
  • Stopper securely fits against the workpiece, allowing for a stable scribed line to be drawn without slipping
  • 45° scribed line can be drawn quickly by changing the position of the stopper
  • Use the stopper’s vernier caliper to measure the thickness or diameter of an item or workpiece
  • Vernier scale allows for fine measurements in 1/16" or 0.1 mm increments
  • Mount the stopper upside down to measure height or depth

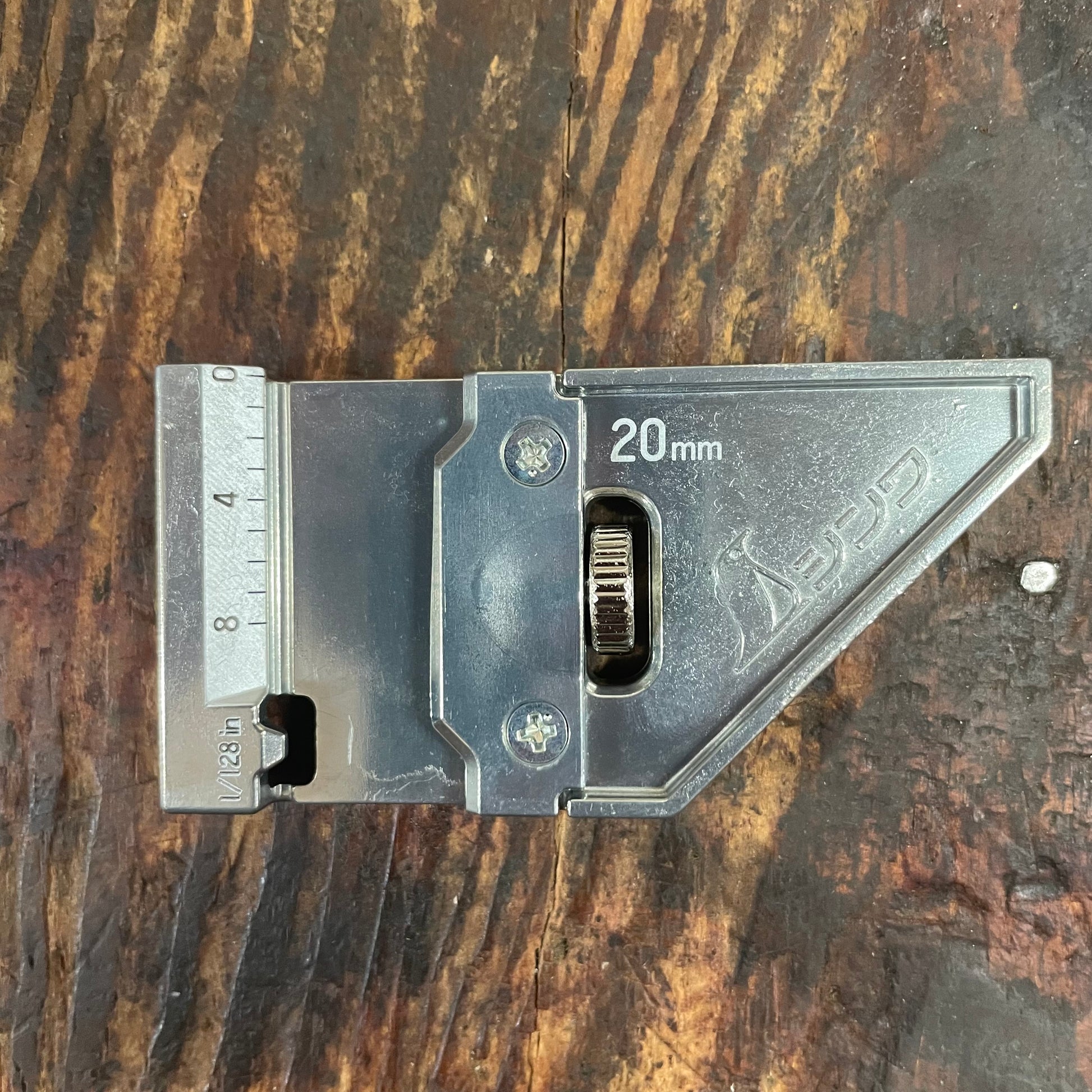

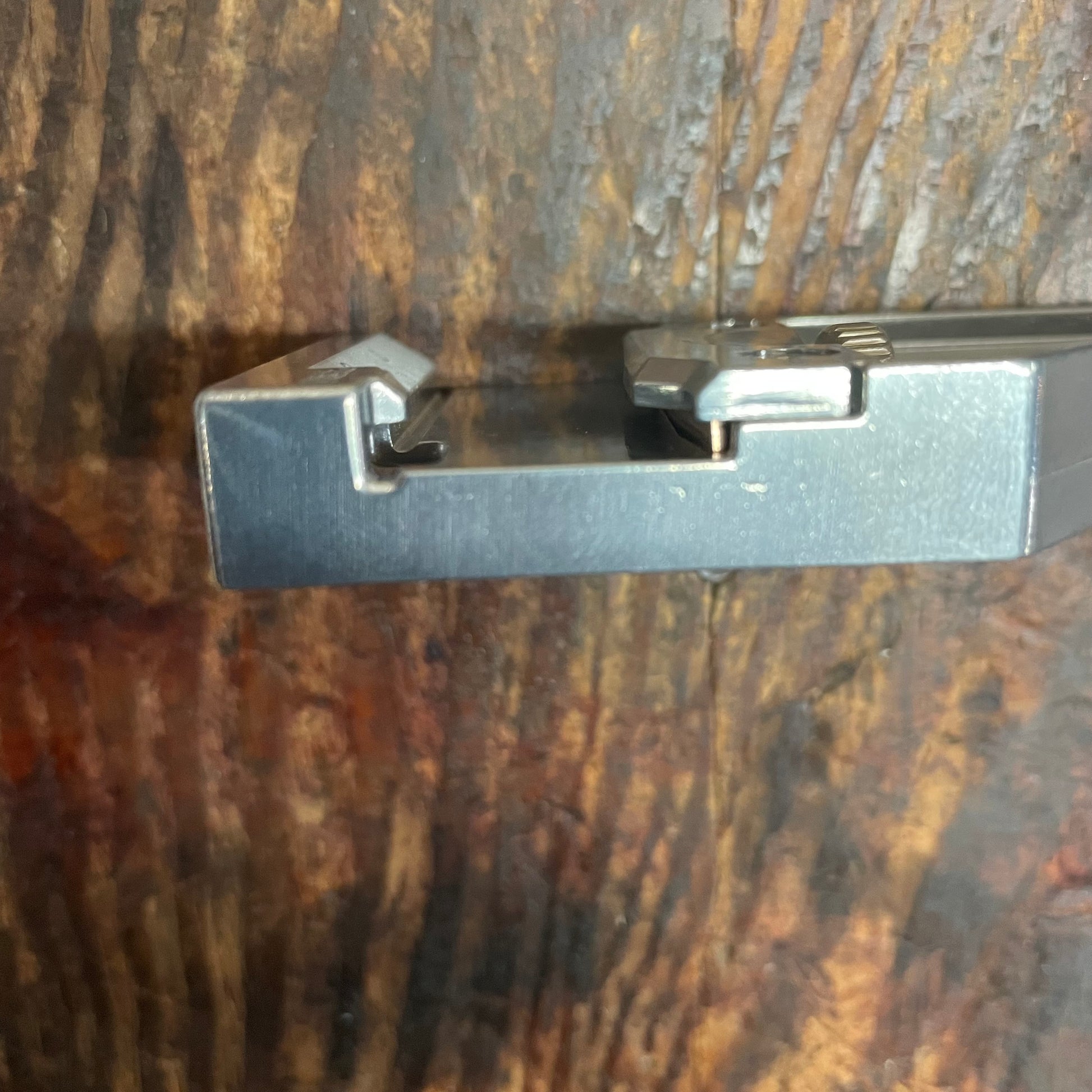

The metal 90/45 degree stopper is designed so you can use it for marking parallel to an edge or at 45 degrees, as a caliper, or turn the stopper the other way around and use it as a height gauge. The stopper is die-cast with an etched vernier scale, a captive locking screw and a bronze wear plate to protect the edges of the square.

  • Thickness: 5/64"
  • Square Stopper Width: 13/16"
  • Angle Tolerance of Stopper: Less than 0.008" per 3.94"
  • Stopper Materials: Body - zinc, screw-iron and leaf spring - bronze
